Laser Marking Machines · Laser Marking

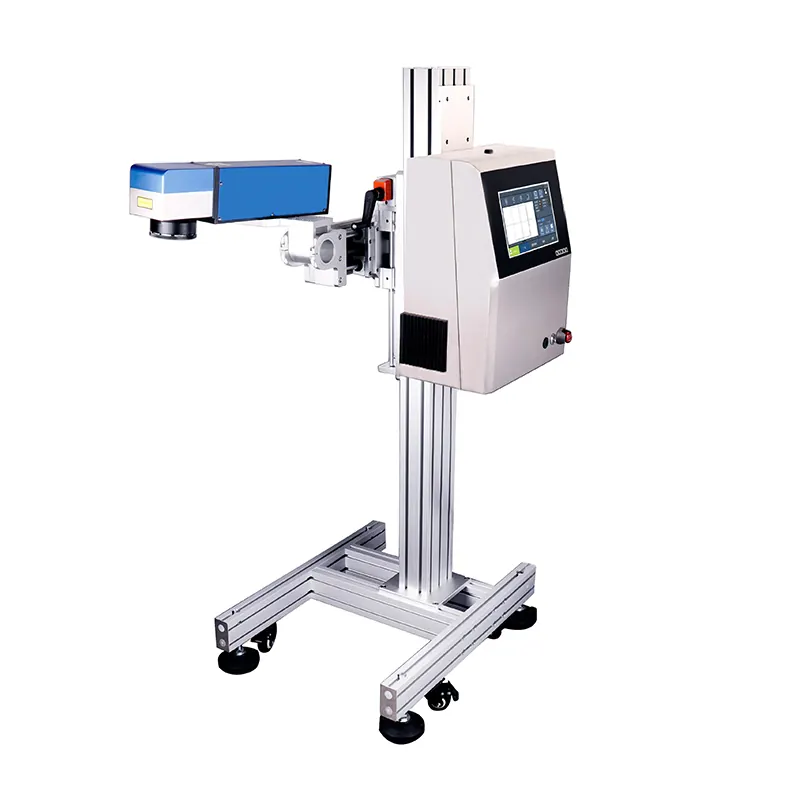

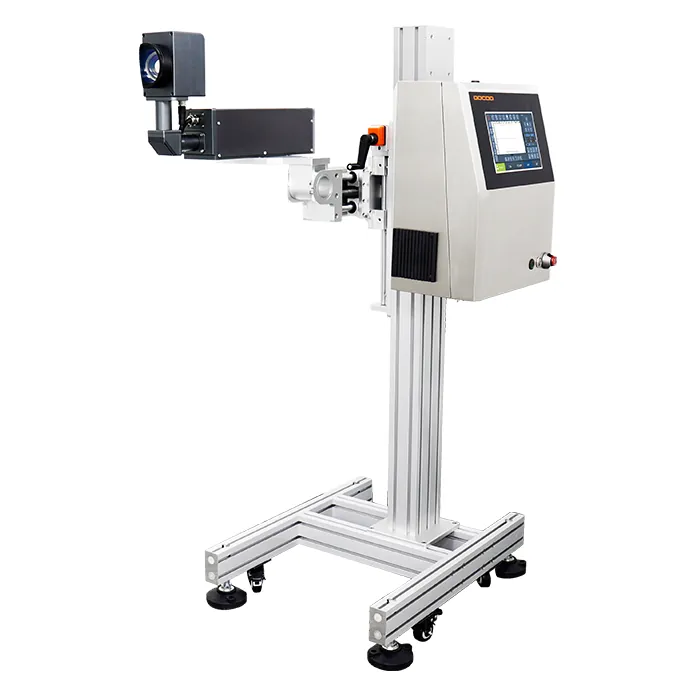

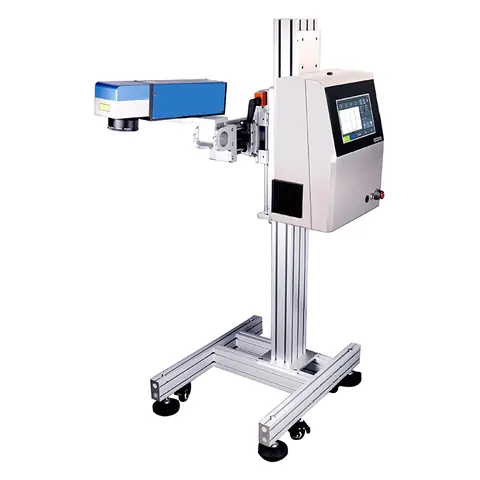

Fiber Laser Marking Machine MF-LF Series
1064 nm fiber laser marking machine (MF-LF series, 20–80 W) with dual red-light positioning and a compact, easy-to-operate body for permanent marks on metal.
- Supplier: Shenzhen Mufeng Technology Limited Company
- Type: New laser marker (MufengTech)
- Category: Laser Marking
- Price & lead time: on request
Product Details
Fiber Laser Marking Machine
-
Dual Red Light Positioning
-
Small Size
-
Easy to Operate
| Model | MF-LF020/30/50/60/80 |
| Laser Power | 20w/30w/50w/60w/80w |
| Laser Wavelength | 1064nm |
| Marking Precision | 3-5μ |
| Marking Area | 50-300MM（Can choose other range） |
| Application | Metal Material |
| Marking Speed | ≤18000mm/s |
| Min Line Width | 0.02mm |
| Min Character | Adjust freely within marking range |
| Supported Formats | DXF/PLT/AI/PNG/JPG/BMP |
| Machine Power | 500w/600w/800w |
| Voltage input | 110v-220v/50-60Hz |
| Cooling Mode | Air cooling |
Software system
| Laser control system features |
| Hardware time is not lost (working continuously in stock for more than 1 year) |
| Supports network port and serial port communication, touch control and mouse control |
| Operating temperature -10℃ to +60℃ |
| Panel waterproof and dustproof |
| Software support laser state alarm and monitoring |
| Software supports serial communication to turn on and off the laser |
| Support automatic removal of font intersections to achieve perfect laser jet effect |
| Support preview path and line maximum matching line quick check |
| Support path optimization function, customers do not need to move files on the interface, it can automatically adjust to the optimal position |
| Support marking total number shutdown save, boot into marking state and other Settings |
| Multiple languages: Simplified Chinese, traditional Chinese, Korean, Japanese, German, French, Arabic, Spanish, Portuguese, Vietnamese, Persian, Russian, Thai, Polish, and Turkish |
| Supports remote monitoring programs over the network |
| Supports real-time adjustment of information position during marking |
